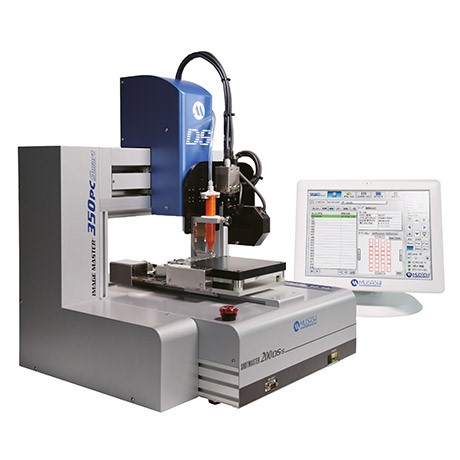

Dispenser – 350 PC Smart- Omega 300
Dispenser – 350 PC Smart- Omega 300
- Provider: Hakledo GmbH (Musashi Engineering Europe GmbH)
- Desktop robot X Y Z axis positioning system (accuracy of ± 5 µm)
- Fine feature application nozzles (20 to 600 µm)
- Large feature application nozzles (150 to 2400 µm)
- Working distance substrate/nozzle: down to 10 µm (with auto-correction in Z axis during dispensing)
- Substrate size: up to 250 x 250 mm
- Dispensing linewidth: 20 to 2400 µm
- Material viscosity range: 1 to 100000 CPS
