C600


Challenger C600

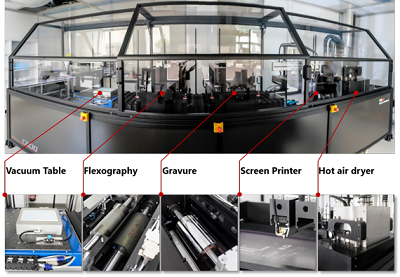

C600 is a unique concept printer (from nsm Norbert Schläfli AG) with flexo, gravure and screen printing modular units for advanced functional material research. The C600 offers tremendous possibilities with its multiple printing units, semi industrial printing speeds (1.5 m/sec) and inline drying system. It offers below 10µm inter print unit registration, thus opens new dimensions for additive manufacturing research.

VIDEO: https://www.youtube-nocookie.com/embed/GYTX8GUXQPY






Technical data and performance:

  • Flexo printing
  • Gravure printing
  • Screen printing
  • Drying unit: comb nozzle dryer from CN DRYING technology Link: www.dryingtechnology.de
  • Maximum printing size: length 240 mm / width 170 mm
  • Printing speed: up to 1.5 m/sec with infinitely variable adjustment
  • Register and reproducibility: < 10 µm; printing of multilayers with a < 10 µm overprint accuracy
  • Very low ink consumption



Figure shows register and reproducibility for all 3 printing units. Position of repeatedly printed markers across the whole printing area were measured. Circle shows ±5 µm distance from origin.
