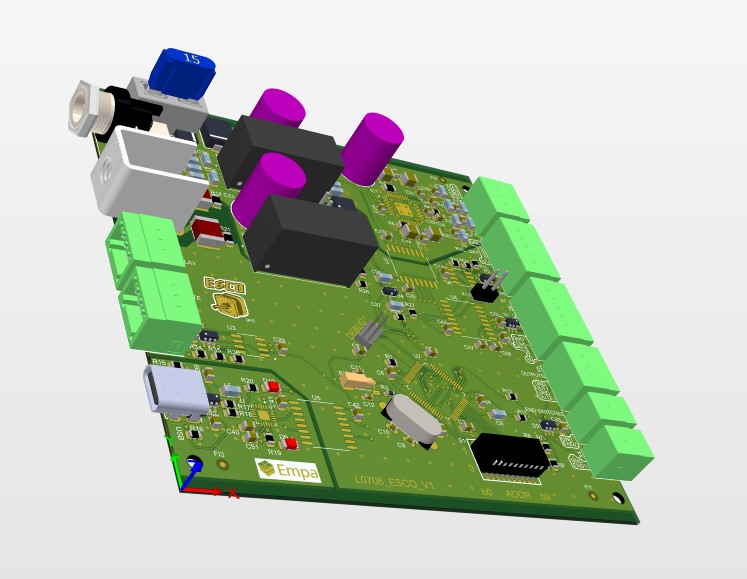

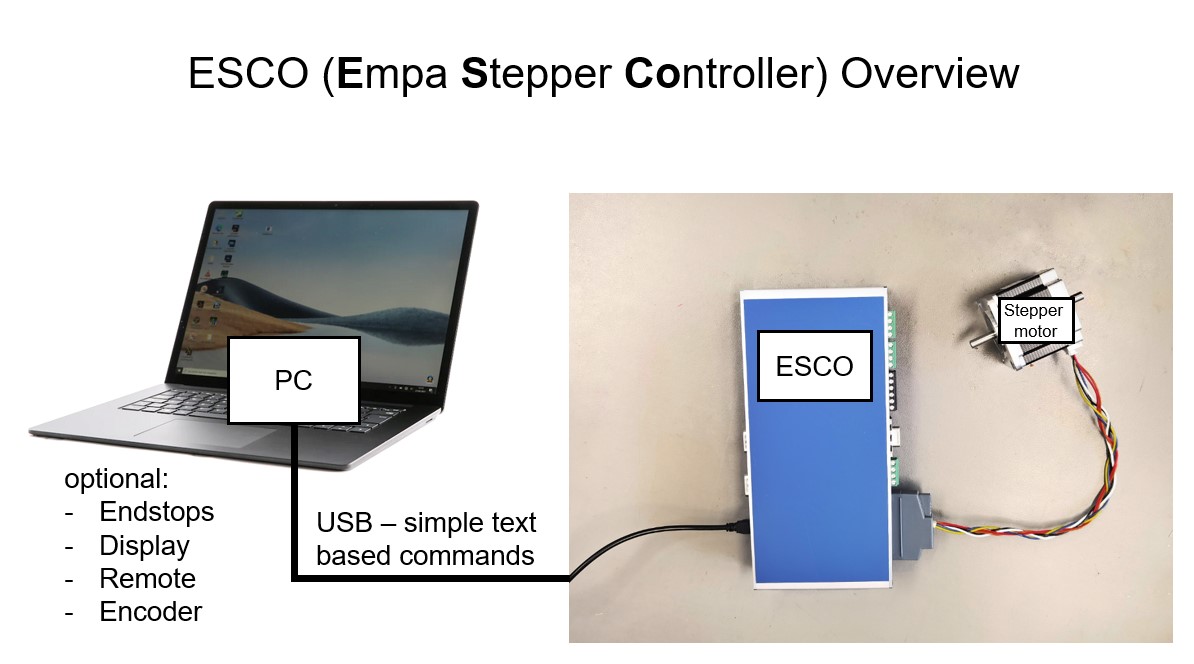

*IDN?

Standardized identification command (SCPI). Returns "ESCO V<version>"

help

Returns human-readable list of commands. Designed to be used in a terminal.

help_setting

Returns human-readable list of settings. Designed to be used in a terminal.

init

Resets all settings to default. Should be executed before all settings are set.

exit

Does nothing at the moment

get_status

Returns value of type stepperStatus_t

typedef struct

{

  uint32_t undervoltage :1;

  uint32_t communication_error :1;

  uint32_t motor_moving :1;

  uint32_t motor_moving_dir :1;

  uint32_t motor_error :1;

  uint32_t motor_overtemp_prewarn :1;

  uint32_t motor_overtemp :1;

  uint32_t motor_open_cable :1;

  uint32_t motor_short :1;

  uint32_t motor_stall :1;

} stepperStatus_t;

get_position

Returns position value, type int32_t. If a HW-Encoder is configured, the position is read and sent back. Otherwise the Software position is returned (zeroed on power up or when zero_position command is sent)

move_absolute

Takes argument position (int32_t). Can be positive or negative.

move_relative

Takes argument amount of steps (int32_t). Can be positive or negative.

set_setting

Takes two arguments, <setting> <value> separated with a space. See settings below for possible values

get_setting

Takes one argument, <setting>. See settings below for possible values

get_address

Returns the address that is set on the PCB with the DIP Switches. Useful for identification and assignment of COM Ports when multiple ESCOs are used in the setup

drive_on

Turns the power of the motor on.

drive_off

Turns the power of the motor off. Useful to save energy or prevent the motor from getting hot. Be careful when using microstepping and SW positioning, the motor can move to the next full step.

stop_movement

Stops the motor, cancels ongoing movement commands.

get_version

Returns 24bit version number SW_VERSION | INTERFACE_VERSION << 8 | HW_VERSION << 16

zero_position

Zeroes the current position. Works only with Software Encoder/ Software Positioning.

const_v+

Constantly move with the velocity set in one direction (increasing the position)

const_v-

Constantly move with the velocity set in the other direction (decreasing the position)

motor_current

The motor current can be set in discrete steps. Possible values are:

0 -> 0.2A (default)

1-> 0.5A

2-> 0.75A

3-> 1A

4-> 1.5A

5-> 2A

steps_per_revolution

How many full steps the motor has in one revolution:

0-> 200 steps (default)

1-> 400 steps

encoder_type

Configure the type of encoder used:

0-> Software encoder (default)

1-> Absolute, SSI, 8192 per turn, 4096 turns

hold_current

Configure the motor current when the motor is not moving as a percentage of the setting 'motor_current'

0 -> 100% (default)

1-> 50%

2-> 25%

microstepping

Configure the amount of microsteps in between full steps. Higher allows for smoother operation:

0 -> 256 (default)

1-> 128

2-> 64

3-> 32

4-> 16

5-> 8

6-> 4

7-> 2

8-> no microstepping

endswitches

If you want to use position end switches e.g. to guard your linear movement they can be enabled here:

0-> no endswitches (default)

1-> endswitches on lower end enabled

2-> endswitches on upper end enabled

3-> endswitches on both ends enabled

endswitches_polarity

Configure the polarity of your endswitch signal:

0-> low voltage level means end stop hit on both (default)

1-> invert lower end

2-> invert upper end

3-> invert both

velocity

0...(2^23)-512 [μsteps/t]

t = 2^24 / fCLK

fCLK = ~13.5MHz, see Datasheet TMC5130

acceleration

0...(2^16)-1 [μsteps/ta²]

a² = 2^41 / (fCLK)²

fCLK = ~13.5MHz, see Datasheet TMC5130
