CATCOS

/documents/56101/249391/1.jpg/b031573d-1ba0-44bc-972b-92bfa9a40eee?t=1448282471967
CATCOS logo
Currently (2011-2016), the GAW team at Empa (QA/SAC Switzerland and WCC-Empa) is also involved in the CATCOS Phase 2 (Capacity Building and Twinning for Climate Observing Systems) project that is funded by the Swiss Agency for Development and Cooperation (SDC) with MeteoSwiss as the coordinating partner.
/documents/56101/249391/2.png/586de616-b06f-4f36-a453-cb353a3646ed?t=1448282472093

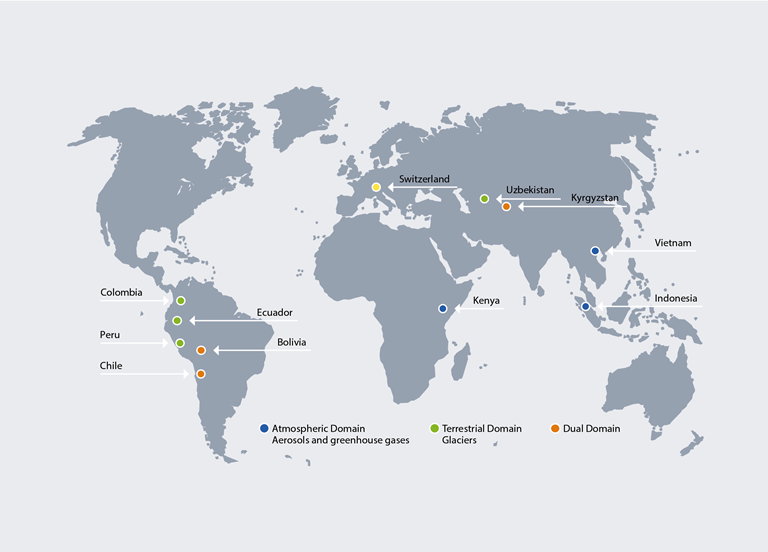

Geographical extent of the project intervention

Within CATCOS, Empa is responsible for the implementation of greenhouse gas observation capabilities in Vietnam, Chile and Kyrgyzstan & associated twinning / support. Other activities cover the implementation of aerosol measurement capabilities in Vietnam, Chile, Kenya and Indonesia (by Paul Scherrer Institut) and the monitoring of glaciers in Kyrgyzstan, Ecuador and Colombia as part of the terrestrial component of the project (implemented by University of Fribourg and University of Zurich). As well, knowledge transfer in air pollution monitoring is fulfilled in Bolivia (Red MoniCA/Aire Limpio project).

/documents/56101/249391/3.jpg/cd6f114d-51fa-479d-a933-8b2aff60314b?t=1448282472187
Greenhouse Gas ond ozone measurement equipment at Pha Din
Cavity Ringdown Spectrometers (for CO2, CH4 and CO) and UV absorption analyzers (for O3) along with periphery such as calibration devices, reference gases, pumps, and central data acquisitions were installed at both sites.
/documents/56101/249391/4.jpg/506a717b-36e5-4eef-8f58-2b3add890c4f?t=1448282472280

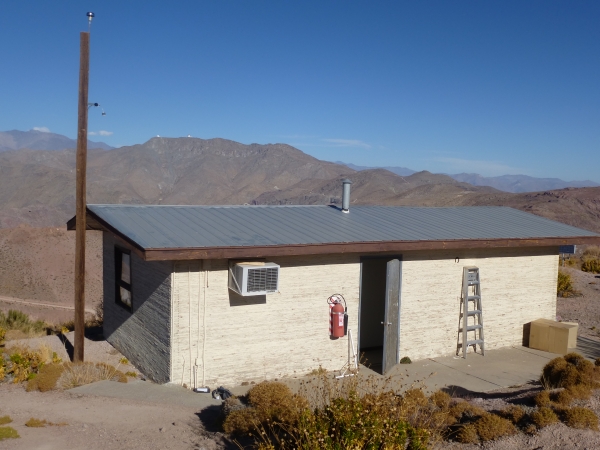

El Tololo station
The El Tololo Regional GAW Station is located at the Cerro Tololo Inter-American Observatory in the foothills of the Andes (30.17degS, 70.80degW, 2040m asl) and is operated by the Dirección Meteorológica de Chile (DMC). Measurements of aerosol optical properties were implemented by the Paul Scherrer Institute. The station is located in a pristine environment without significant influence by local sources. Thus, data at El Tololo are representative for conditions in the background atmosphere in the Southern hemisphere. The installations took place in April 2013.
/documents/56101/249391/5.jpg/9e037b7e-cfbe-4f68-8cf9-4d4933659f0d?t=1448282472403

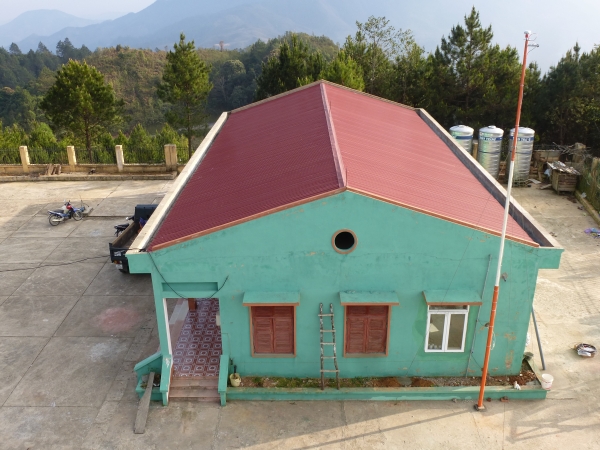

Pha Din station

The equipment in Vietnam was implemented in collaboration with the Vietnamese National Hydro-Meteorological Service (NHMS) at the Pha Din climate station (21.57degN, 103.52degE, 1466m asl), a rural site in a hilly forested area in Northern Vietnam. Also at Pha Din the implementation was jointly performed with PSI staff that implemented observations of aerosol optical properties. The Pha Din station is the first of its kind recording greenhouse gases, surface ozone and aerosol properties in a rural setting in Viet Nam. The installations took place in February 2014.

/documents/56101/249391/CholponAtaInstallationSmall/ec6442f7-15cf-4016-a130-fb5e57117434?t=1473784160646

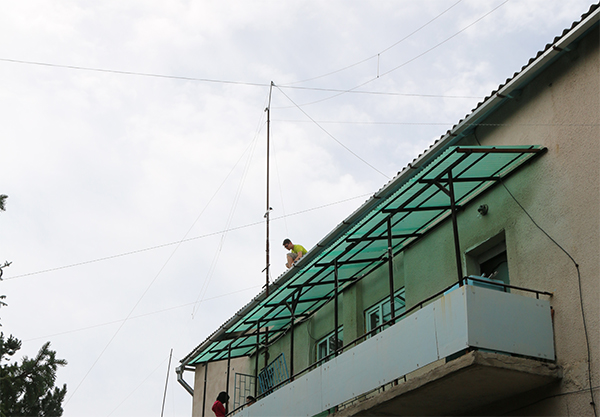

Cholpon-Ata station installation in August 2016

In August 2016, the Empa team installed a further station in Cholpon-Ata, Kyrgyzstan (42.63685°N, 77.0675°E). Cholpon-Ata is located at 1613 meters asl., around 200 km in the East of the Kyrgyz capital Bishkek. In the vicinity, there is a city with 12'000 inhabitants. In the south, the station is surrounded by a large lake (Lake Issyk-Kul, over around 120° azimuth), while mountains with peaks up to 4300 m high restrict the horizon in the north (over around 140° azimuth). Due to diurnal winds, relatively clean air will be measured during the low season in spring and autumn.

/documents/56101/249391/6.png/f3574761-f5c7-4383-88e4-1fa4358cf215?t=1448282472497

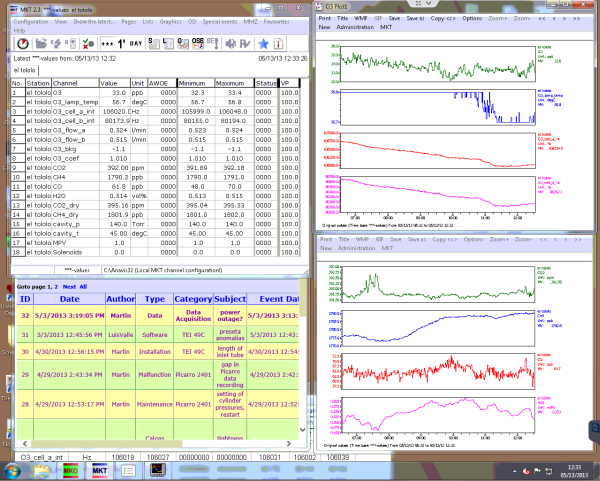

Screenshot of data acquisition and logbook at El Tololo

Remote access to the computers running at the sites enables regular data transfer to Empa and to the headquarters of the local partners and conveniently allows trouble shooting and advice in case of malfunctions. Measured data can be visualized in near-real-time all over the world (see link on the right).

/documents/56101/249391/7.jpg/5c95a95d-1b71-4585-bf82-7faa9d65aed6?t=1448282472577
Training of local operators at Pha Din
Next to a careful evaluation of a robust instrumental setup, full remote control of the equipment, easy-to-use programs for documentation and sound quality assurance / quality control procedures adequate training of the operators is key when aiming for the sustainability of the established observations.
Further Information
Please direct questions and/or comments about Empa’s GAW activities to  (Head of Department), Martin Steinbacher (QA/SAC Switzerland), or Christoph Zellweger (WCC-Empa), or Julien Anet (CATCOS).
