Electrochemistry to satisfy mass demand
Super environmentally friendly:
the “fool’s gold battery”
There is an urgent need to search for low-priced batteries to store electricity. Intermittency of green electricity is affecting the power grids, calling for stationary storage units to be connected into a smart grid. Electric cars are of increasing popularity, but are still too expensive. Efficient lithium ion batteries we know are not suitable for large-scale stationary storage of electricity; they are just too expensive and precious lithium is too scarce. A cheap alternative is called for – a battery made of inexpensive ingredients that are highly abundant. But electrochemistry is a tricky business: Not everything that’s cheap can be used to make a battery.
Safe, durable and affordable

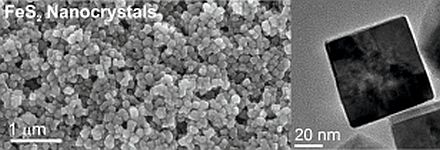

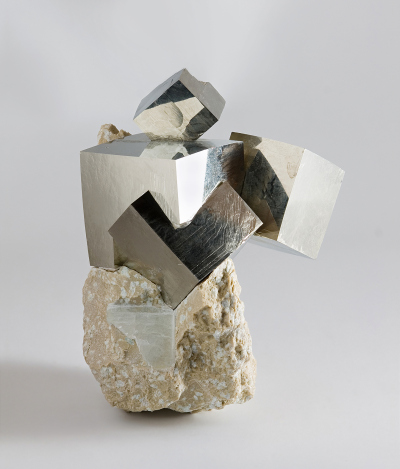

Maksym Kovalenko, Marc Walter and their colleagues at Empa’s Laboratory for Thin Films and Photovoltaics have now managed to pull off the unthinkable: by combining a magnesium anode with an electrolyte made of magnesium and sodium ions. Nanocrystals made of pyrite – more commonly known as fool’s gold – serve as the cathode. Pyrite is crystalline iron sulfide. The sodium ions from the electrolyte migrate to the cathode during discharging. When the battery is recharged, the pyrite re-releases the sodium ions. This so-called sodium-magnesium hybrid battery already works in the lab and has several advantages: The magnesium as the anode is far safer than highly flammable lithium. And the test battery in the lab already withstood 40 charging and discharging cycles without compromising its performance, calling for further optimization.
Potential for storing the electricity produced annually at Leibstadt power station
The researchers primarily see potential in their development for large network storage batteries. The fool’s gold battery is not suitable for electric cars – its output is too low. But wherever it boils down to costs, safety and environmental friendliness, the technology is a plus. In their paper recently published in the journal Chemistry of Materials, the Empa researchers propose batteries with potential terawatt-hours-level storage. Such a battery might be used to temporarily store the annual production from the Swiss nuclear power station in Leibstadt, for instance. “The battery’s full potential has not been exhausted yet,” says Kovalenko, who teaches as a professor at ETH Zurich’s Department of Chemistry and Applied Biosciences alongside his research at Empa. “If we refine the electrolytes, we’re bound to be able to increase the electric voltage of the sodium-magnesium hybrid cell even further and to extend its cycling life.” He adds: “We also look for investors willing to support research into such post-Li-ion technologies and bring them to the market”.
Efficient and Inexpensive Sodium–Magnesium Hybrid Battery
M Walter, KV Kravchyk, M Ibáñez, MV Kovalenko
Chem Mater, 2015, 27 (21), pp 7452–7458, DOI: 10.1021/acs.chemmater.5b03531
