Medical technology
A sensitive drill
Hearing-impaired people whose auditory nerve is still intact can often be helped with a cochlear implant. But inserting the implant into the inner ear is not without risks, as facial nerves can be damaged in the process. Empa researchers have developed a novel smart drill that minimizes the risk by automatically shutting off when it comes near nerves.

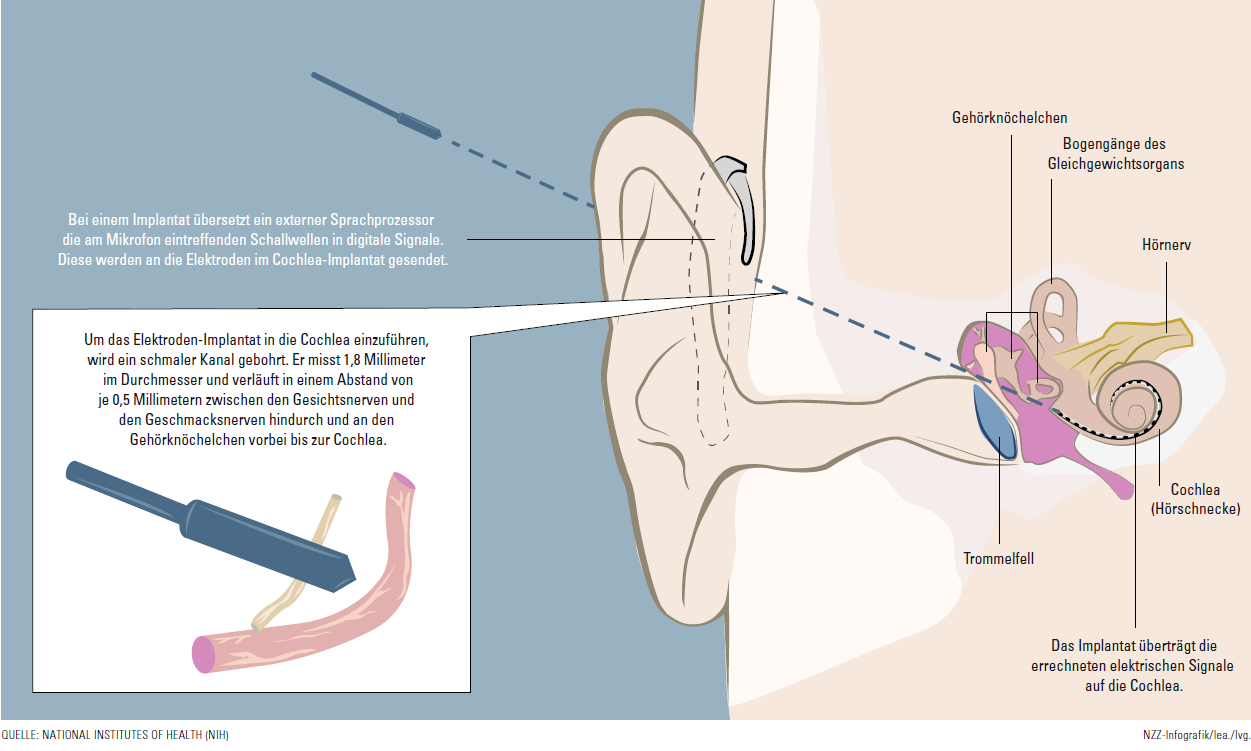

Methods of Advanced Manufacturing can lead to remarkable advances in surgery. A group of researchers led by Stefan Weber of the University of Bern's ARTORG Center for Biomedical Engineering Research has developed a robot that can insert cochlear implants more gently than a surgeon. "When a surgeon performs the procedure, he has to remove relatively large areas of the skull bone," Weber explained in an article in the NZZ. Only when he can see where the nerves are located will he use the drill, he said. The robot, on the other hand, drills only a 1.8 millimeter wide channel, the course of which is determined on the basis of a previously created CT image.
But the surgeons must not drill at random, because the hole for the cochlear implant must lie exactly between the taste nerve and the facial nerve. At one point, these nerves are only three millimeters apart and must not be damaged under any circumstances. Until now, surgeons proceeded like this: Just before the constriction, they stopped drilling and irritated the facial nerve with an electric tip. If the twitching in the patient's face is not too strong, drilling can continue carefully.
Drill and stimulator at the same time
The physicians at the ARTORG Center approached Empa with the question: Couldn't we develop a drill that would also electrically stimulate the facial nerve, i.e. a drill that would indicate its position in the patient's skull? Kerstin Thorwarth from Empa's Surface Science and Coating Technologies lab went to work. Together with a colleague, she developed a drill with a conductive tip as part of a master's thesis and an Innosuisse project. The conductive and insulating hard coatings of titanium nitride (TiN) and silicon nitride (Si3N4) were applied to the drill tip by magnetron sputtering. For this, the individual windings of the drill had to be covered with special masks.
Not yet certified for medical applications
"The smart drill for cochlear surgery could also be used for spinal surgery, for example," says project leader Stefan Weber.
Now the Empa researchers are working with the surgeons to find an industrial partner who can manufacture the smart drill in accordance with the legal requirements for medical devices. "This will require further significant development effort," says Weber. And that still needs to be funded.
